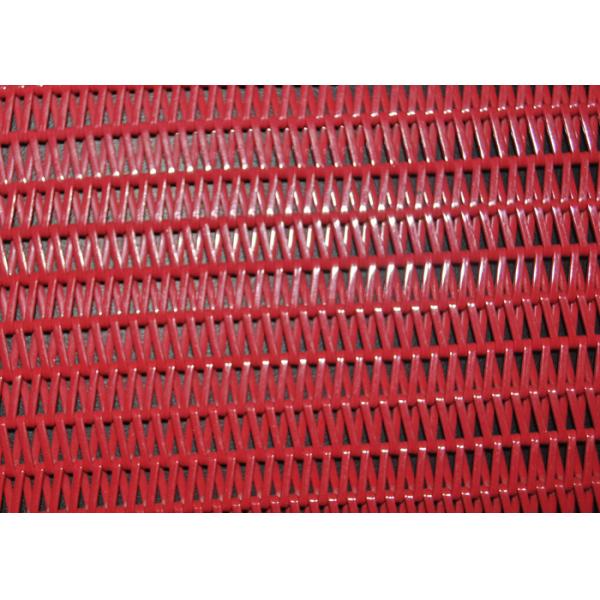

Red Polyester Dryer Screen 3868 Minimum Loop For Paper Making Machine

Anping County PFM Screen CO.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Anping County PFM Screen CO.,Ltd
City: Hengshui
Province/State: Hebei
Country/Region: China
Tel: 86-318-8097607

Red Polyester Dryer Screen 3868 Minimum Loop For Paper Making Machine

Brand Name : PFM
Model Number : PFM-Hel
Certification : FDA
Place of Origin : Hebei,China
MOQ : 10 Square Meter
Price : Negotiable
Payment Terms : L/C, T/T, Western Union, , MoneyGram,Paypal
Supply Ability : 2000 Square Meters Per Quarter
Delivery Time : 3-5 Working Days
Packaging Details : Plastic Bag Inside And Plywood Case Outside Or According To The Customer's Needs.
Marterail : 100% polyester Monofilament
Color : red.
Name : Red Polyester Spiral Dryer Conveyor Belt Screen 3868 Minimum Loop Fabric
Hot Search : Polyester Dryer Screen
Weave Type : Medium loop
Application : Mesh Conveyor Belt
wire diameter : 0.7,0.9mm
Contact Now

Red Polyester Spiral Dryer Conveyor Belt Screen 3868 Minimum Loop Fabric


​ Specification of Polyester Spiral Dryer Conveyor Belt Screen without stuff:


Polyester Spiral Dryer Conveyor Wire Mesh Belt
Weaving TypeModelThread DiameterAir permeability
(mm)(m3/m2h)
WarpWeft
Large Loop40700.91.120000±500
Medium Loop38680.70.918500±500
Small Loop32520.520.715000±500


Polyester Spiral Mesh Belt with stuff,this kind of Polyester Spiral Dryer Conveyor Belt Screen is filled with stuff to reduce the air permeability and to intensive the opening ,then to reduce the material loss from the opening.


Polyester Spiral Dryer Conveyor Belt Screen with Stuff is mainly used in sludge desiccation,paper pulp washing,coal washing,chemicals,dehydration of wine bran,vinegar bran dehydration and other industries.It is better in the high ventilation part of drying part of paper-making machines.


Polyester Spiral Dryer Mesh Belt
Weaving TypeModelThread DiameterAir permeability
(mm)(m3/m2h)
WarpWeftfilled with stuff
Large Loop40700.91.10.9*45500±500
0.9*54500±500
Medium Loop38680.70.90.8*34750±500
0.8*44200±500
Small Loop32520.520.70.68*315000±500



Description:


Polyester Spiral Dryer Conveyor Belt Screen with loop is also called polyester spiral wire mesh belt,Spirl wire dryer screen.


According to loops size:Polyester Mesh can be devided into large loop Polyester Spiral Mesh Belt,Medium Spiral Wire Mesh Belt,Small Loop Wire Mesh Belt.


According to stuff:Polyester Mesh Belt can be devided into Polyester Spiral Mesh Belt and Polyester Spiral Mesh Belt with Stuff,which is polyester wire,which can be added into the loop,the numbers of the wire can be 3,4,5.


According to color,Polyester Mesh Belt can be devided into white,blue,red and black.


Usually the edge of polyester Spiral mesh belt is treated with glue,which is food grade.


Application Polyester Spiral Dryer Conveyor Belt Screen :


  • Paper Making machine
  • drying process of printing and dyeing

Texo weaving machine imported from sweden.

Heat shaping processing is very important to the quality of polyester Mesh Belt ,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.

Advanced programming software completes the controlling,

Polyester Spiral Wire Mesh Belt can be shiped by courier,by air and by sea.


Usually we pack polyester dryer screen with air bubble film,if ship by sea, it will be packed with plywood case.



Product Tags:

polyester spiral mesh



polyester mesh fabric


China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

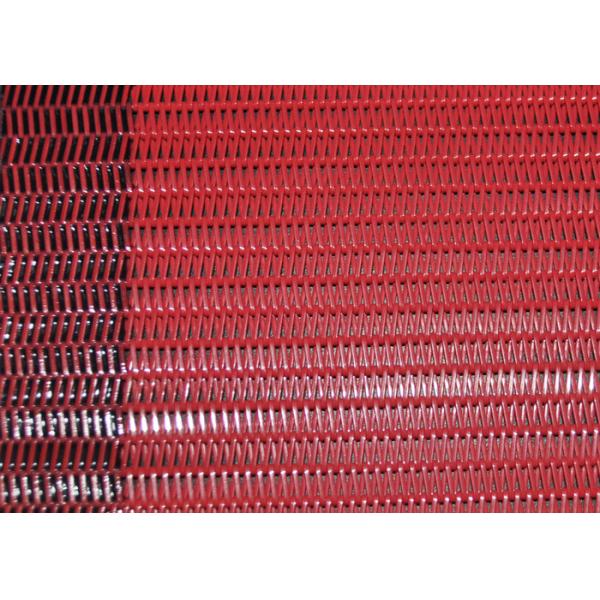

Red Polyester Dryer Screen 3868 Minimum Loop For Paper Making Machine Images
